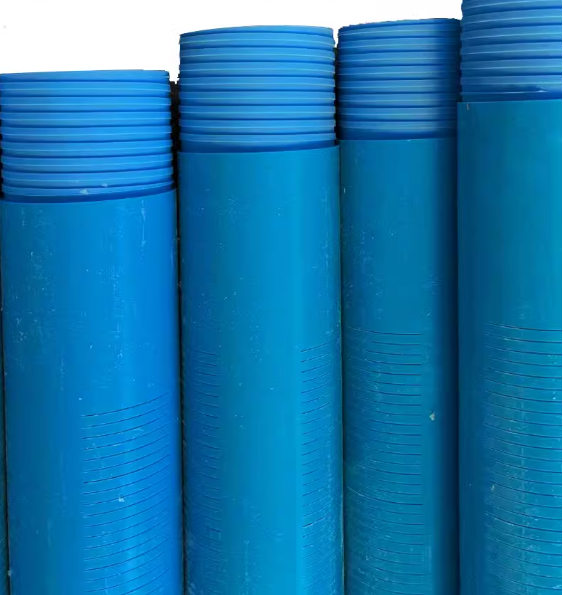

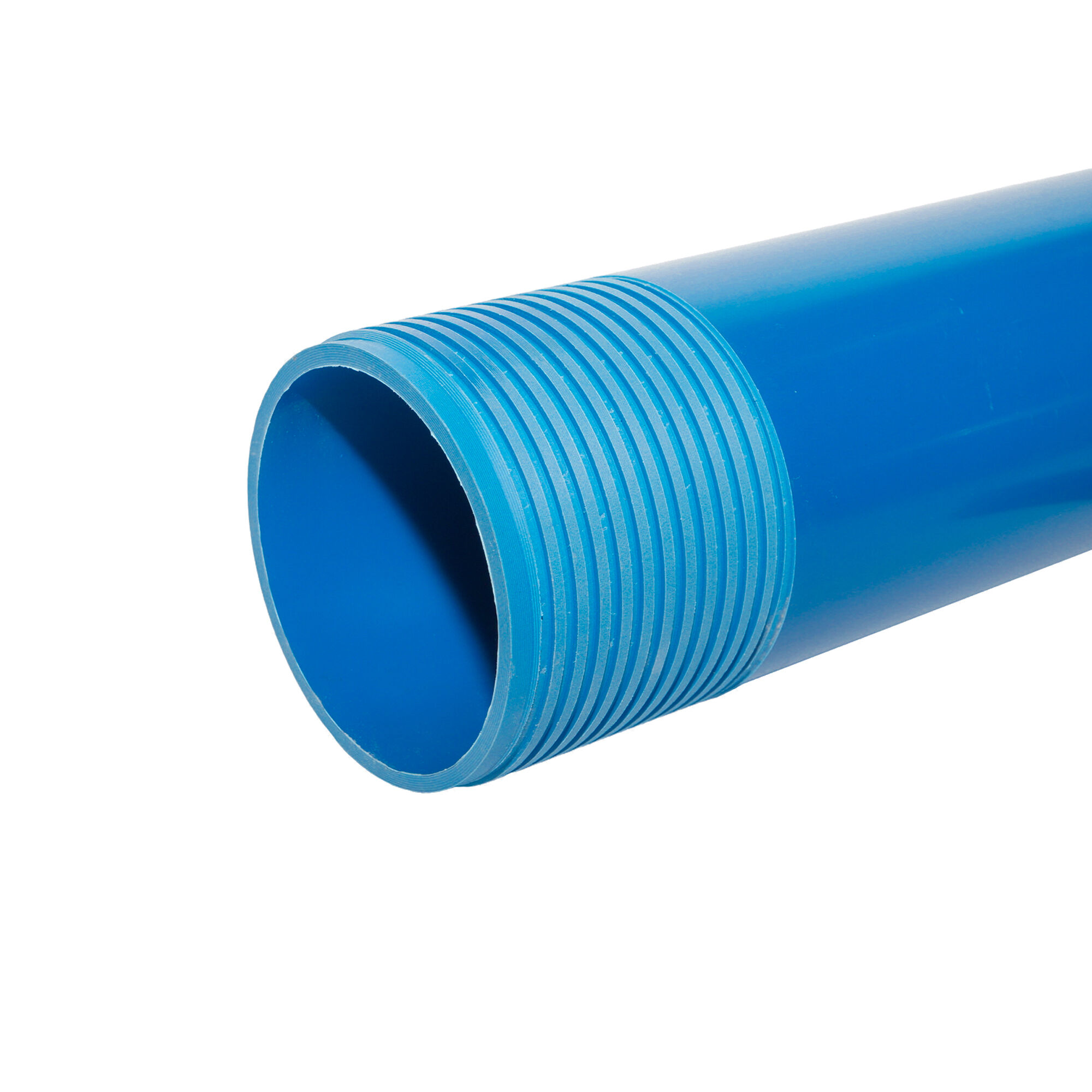

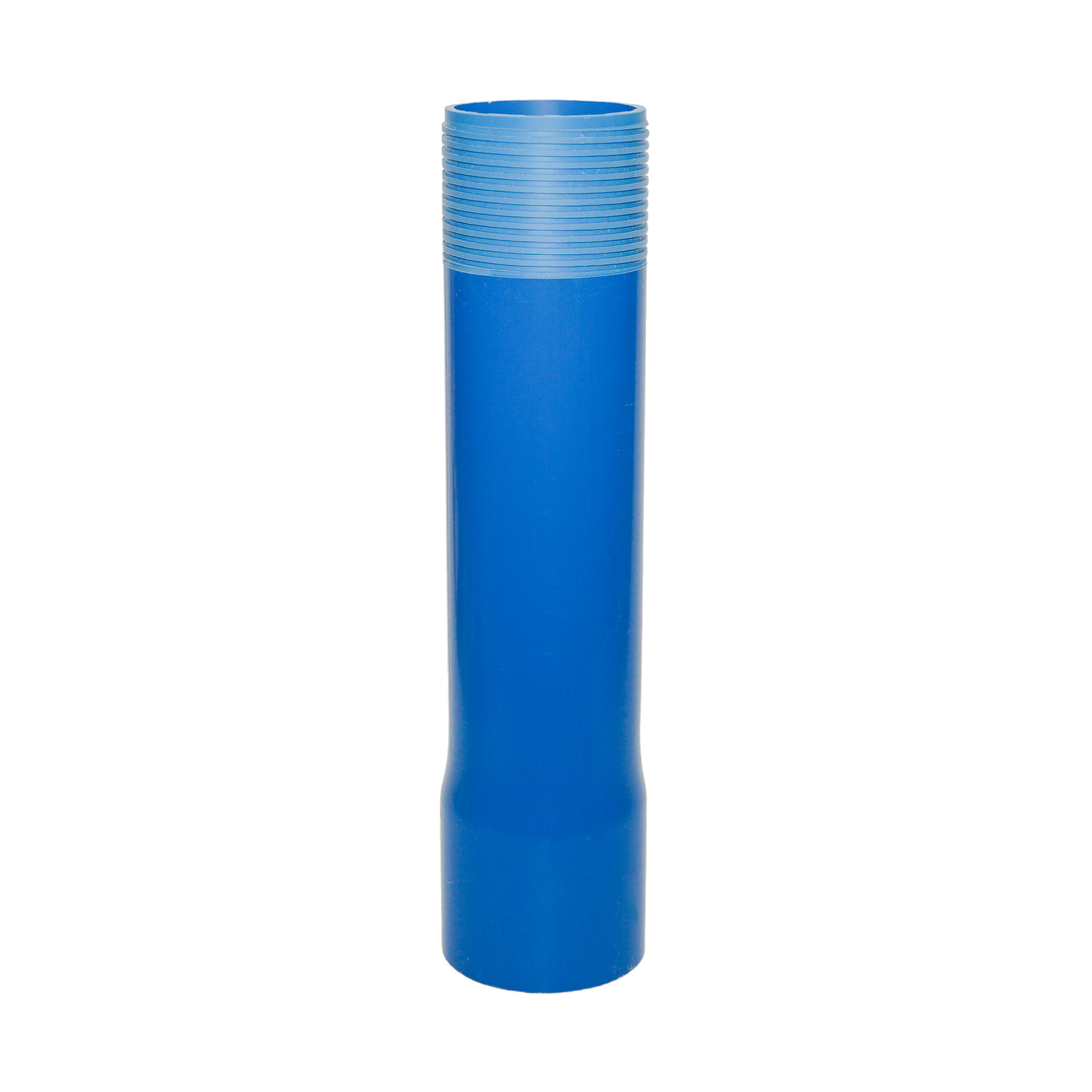

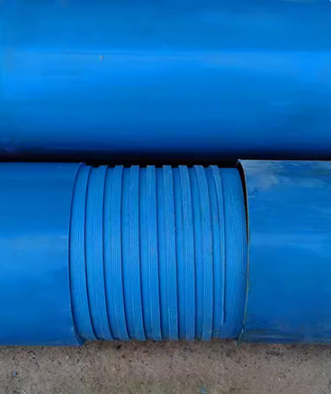

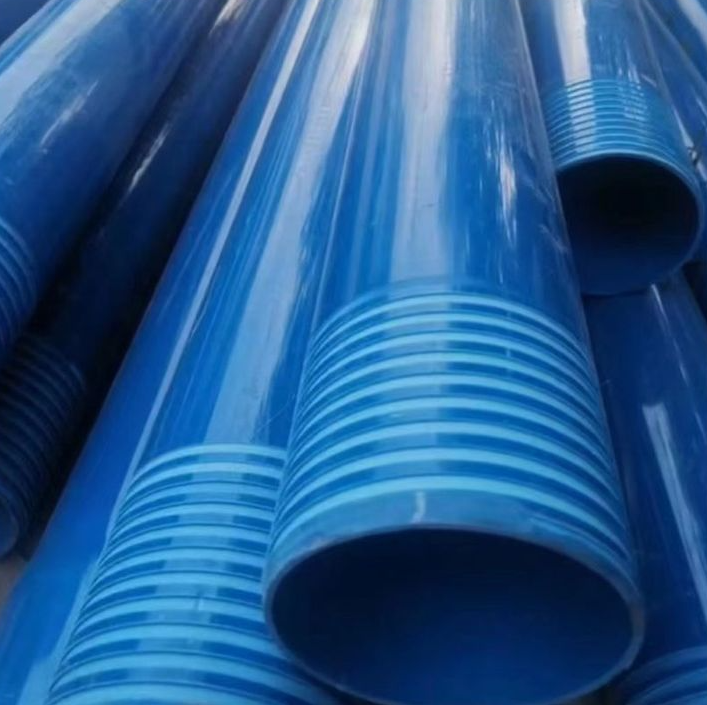

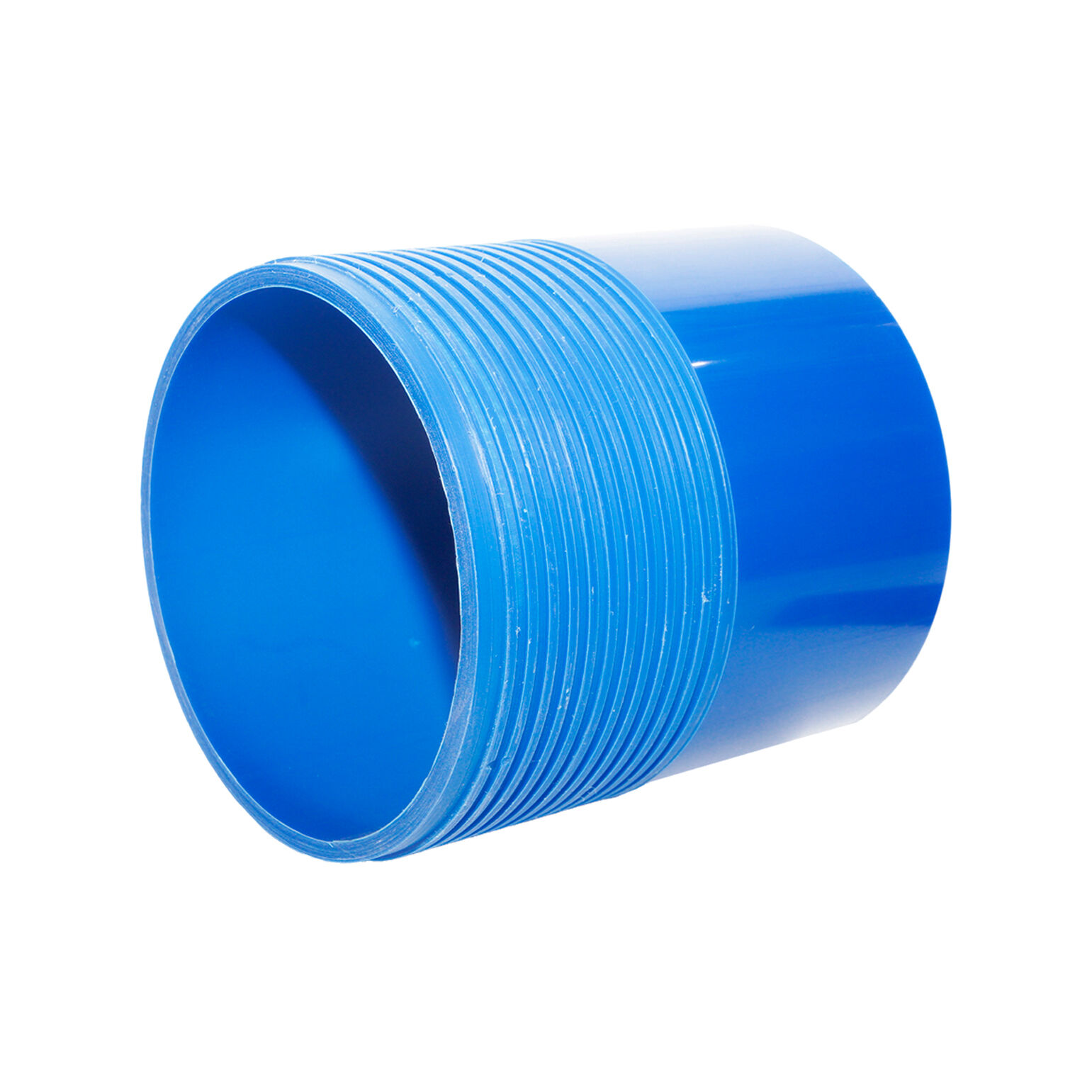

UPVC Well Casing Pipe and Screen Pipes are an ideal prodcut for protection of domestic, irrigation, industrial & mining bore wells, keeping out the gravel pack and foreign particals providing clean and clear water from the bore wells.
- Overview
- Parameter
- FAQ
- Recommended Products
UPVC Well Casing Pipe and Screen Pipes are an ideal prodcut for protection of domestic, irrigation, industrial & mining bore wells, keeping out the gravel pack and foreign particals providing clean and clear water from the bore wells.
|
DN(INCH) |
OD(MM) |
Working Pressure |
Wall Thickness |
Working Pressure |
Wall Thickness |
Working Pressure |
Wall Thickness |
|
mpa |
mm |
mpa |
mm |
mpa |
mm |
||
|
1/2" |
20 |
|
|
|
|
2.0 |
2.0 |
|
3/4" |
25 |
|
|
|
|
1.6 |
2.0 |
|
1" |
32 |
|
|
1.25 |
2.0 |
1.6 |
2.4 |
|
1-1/4" |
40 |
1.0 |
2.0 |
1.25 |
2.4 |
1.6 |
3.0 |
|
1-1/2" |
50 |
1.0 |
2.4 |
1.25 |
3.0 |
1.6 |
3.7 |
|
2" |
63 |
1.0 |
3.0 |
1.25 |
3.8 |
1.6 |
4.7 |
|
3" |
90 |
1.0 |
4.3 |
1.25 |
5.4 |
1.6 |
6.7 |
|
4" |
110 |
1.0 |
4.2 |
1.25 |
5.3 |
1.6 |
6.6 |
|
4-1/2" |
125 |
1.0 |
4.8 |
1.25 |
6.0 |
1.6 |
7.4 |
|
5" |
140 |
1.0 |
5.4 |
1.25 |
6.7 |
1.6 |
8.3 |
|
6" |
160 |
1.0 |
6.2 |
1.25 |
7.7 |
1.6 |
9.5 |
|
7" |
180 |
1.0 |
6.9 |
1.25 |
8.6 |
1.6 |
10.7 |
|
8" |
200 |
1.0 |
7.7 |
1.25 |
9.6 |
1.6 |
11.9 |
|
9" |
225 |
1.0 |
8.6 |
1.25 |
10.8 |
1.6 |
13.4 |
|
10" |
250 |
1.0 |
9.6 |
1.25 |
11.9 |
1.6 |
14.8 |
|
12" |
280 |
1.0 |
10.7 |
1.25 |
13.4 |
1.6 |
16.6 |
|
13" |
315 |
1.0 |
12.1 |
1.25 |
15 |
1.6 |
18.7 |
UPVC Well Casing Pipe and Screen Pipes are an ideal prodcut for protection of domestic, irrigation, industrial & mining bore wells, keeping out the gravel pack and foreign particals providing clean and clear water from the bore wells.
Common Size and working pressure as table below:
Physical and mechanicla properties of pvc pipe for well
|
Item |
Indicators |
Unit |
|
Density |
1350~1460 |
kg/m3 |
|
Vicat softening temperature |
≥80 |
ºC |
|
Longitudinal retraction rate |
≤5 |
% |
|
Ring stiffness |
SN≥12.5 |
kN/ m2 |
|
Tensile yield stress |
≥40 |
Mpa |
|
Drop hammer impact strength |
≤5 |
(0ºC)TIR/% |
1. Resistant erode
PVC pipe has stable chemical property, which can resistant most of acid and alkali.
2. Service life long
Traditional pipe service life is 20-30 years. PVC pipe service life is at least 50 years at a set temperature and pressure.
3. Excellent sanitary performance
PVC pipe is produced by used Tin or Ca/Zn stabilizer, its sanitary performance is full according to GB/T17219 standard and Ministry of Health of the People's Republic of China related water criterion.
4. PVC pipe has better slotted (bored) rate, strong resistant pressure, larger cross flowing, and is the best choice replace steel and concrete slotted (bored) pipe in many fields.
5. Easy installing
PVC slotted (bored) pipe joint form: elastic seal ring joint, cement joint, also crew joint and flange joint. In additional, PVC-M pipe is density low, weight light, lower requirements for worker and construction equipment, construction cost also is lower compared concrete pipe, steel pipe.
6. Inside wall smooth, no furring, flowing easier, no block(n=0.008---0.009),excellent resistant bacteria. It can effectively guarantee pipes long time straightway. For turning over swash field, PVC-M pipes also easily wash clear.

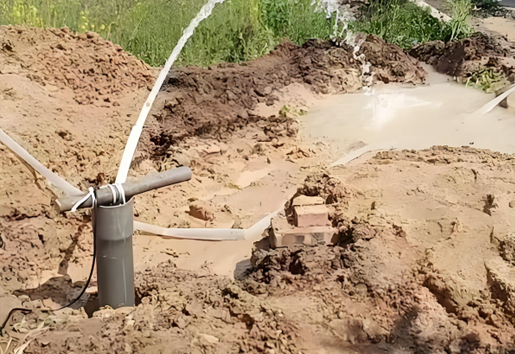

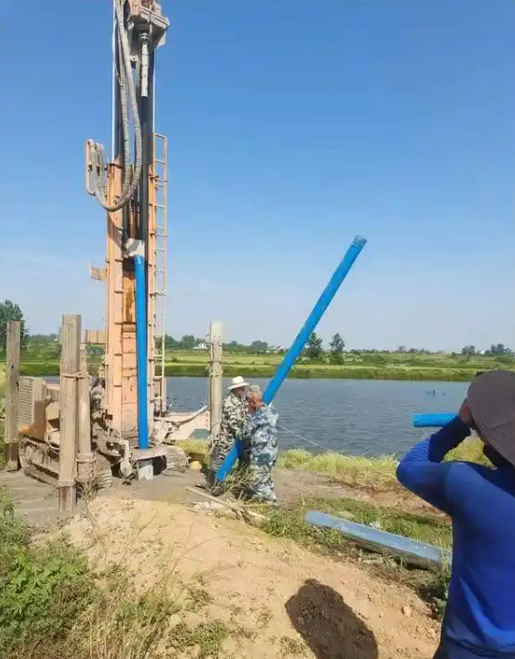

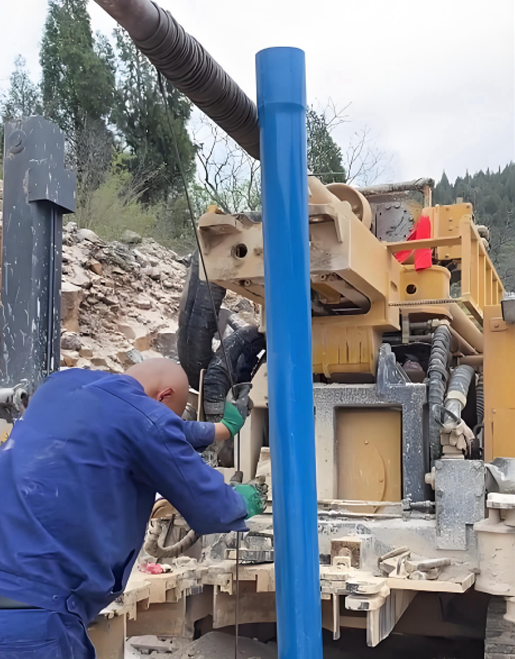

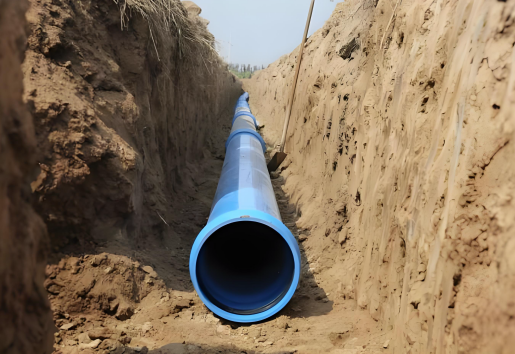

- Well casing
- Well liners
- Pressure systems
- Irrigation
- Submersible pumps
- Jet pumps
1. We are a manufacturer of plastic tubes and fittings. We accept OEM business.
2. We supply stop valve,pipe end cap,equal/reduceing tee,cold hot water ball valve,union ball valve,threaded elbow(plastic or with metal) and so on.
3. We also supply the connectors Accordingly.
4. We can offer you very competitive prices for some pipes.
5. We welcome you to visit our web and our factory. Your visiting will be highly appreciated. It is my pleasure to help you.
6. If you need more customized services and offers,Please Contact Us.
FOSITE is a leading manufacturer for PPR pipes and fittings since foundation in 1995 integrating research, development, production, sales and after-sale service, Mainly producing PPR pipes, PPRCT pipes, PPR aluminum composite pipes, fiber composite pipes, double-ayer PPR pipes, PPR UV pipes, PPRfittings, valves, tools and accessories, etc, which are widely used in water system.
Professional Service:
Pre-sales consultation, in-sales technical support, and after-sales guaranieas, Expert teams wil tailor the bast solution foryou.
Advanced Technology:
More than 500+ molds for tailored designs, Multiple productionlines, state of-the art produclion equlpment, effielent servicesdelivered within 2 months.
Good integrity:
Exported to 40+ countries (Europe, Midd e East, Asla, SouthAmerica, atc.), serving Fortune 500 companies with long-termpartnerships.
Q1: Are you manufacture?
A: YES we are manufacturer.
Q2: Do you provide free sample?
A: YES, we supply you free sample within one day.
Q3: What is your deivery time?
A: Our delivery time is normally 7 to 15 days after deposit.
Q4: What is the payment terms?
A: We accept T/T, L/C at sight, PayPal & West union.
Q5: May I visit your factory?
A: Yes we welcome your visiting us someday at your convenience.
Q6: Can you accept our deisgn and products?
A: Yes we have professional engineer teams. We can deisgn and produce special products According to customers' request.
