HDPE Pipe HDPE Silicon Core Pipe 50mm 40mm 32mm plastic cable conduit
HDPE Pipe HDPE Silicon Core Pipe 50mm 40mm 32mm plastic cable conduit

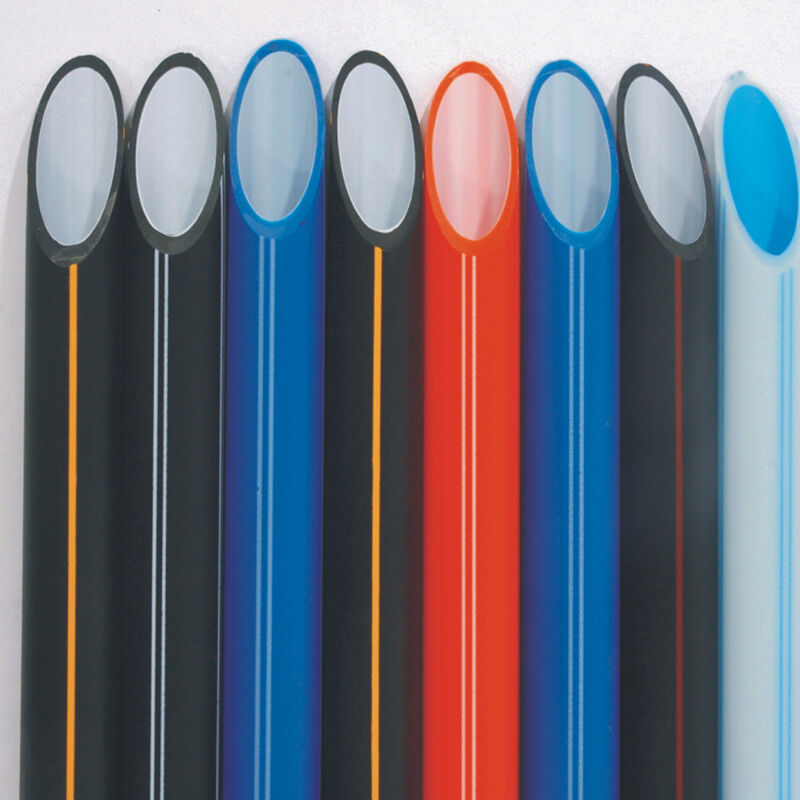

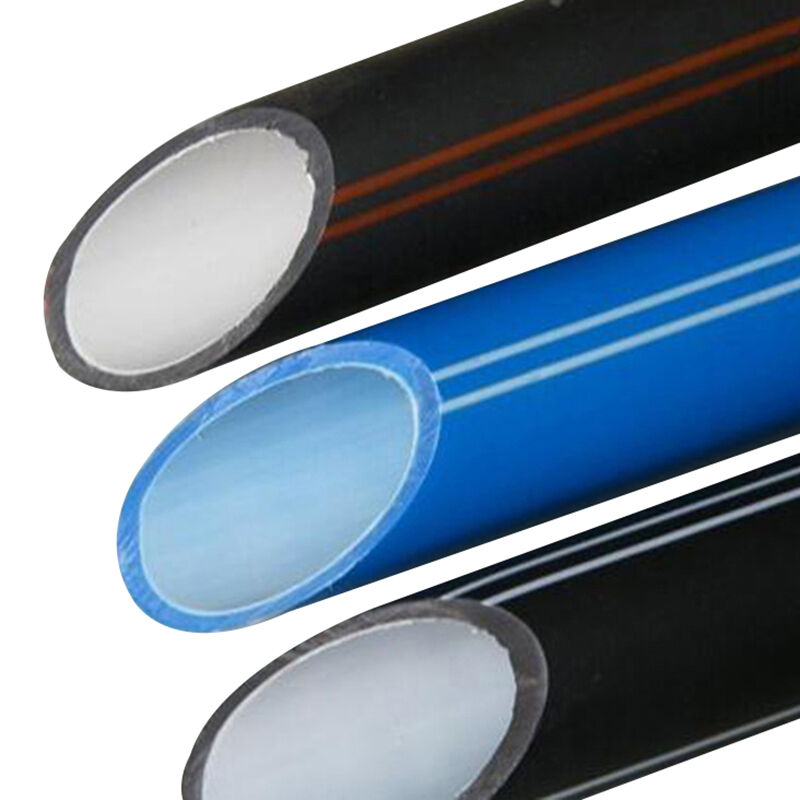

HDPE Ducts are manufactured using ultra-violet (UV) stabilized grade of HDPE with required Anti Oxidant content and other recommended additives. The inner layer of ducts is duly silicon coated which minimizes the friction between OFC and the duct during the process of blowing the cable into the ducts, thus providing smooth installation of OFC in the duct without damaging the cable fibres.
- Overview
- Parameter
- FAQ
- Recommended Products
HDPE Pipe HDPE Silicon Core Pipe 50mm 40mm 32mm plastic cable conduit

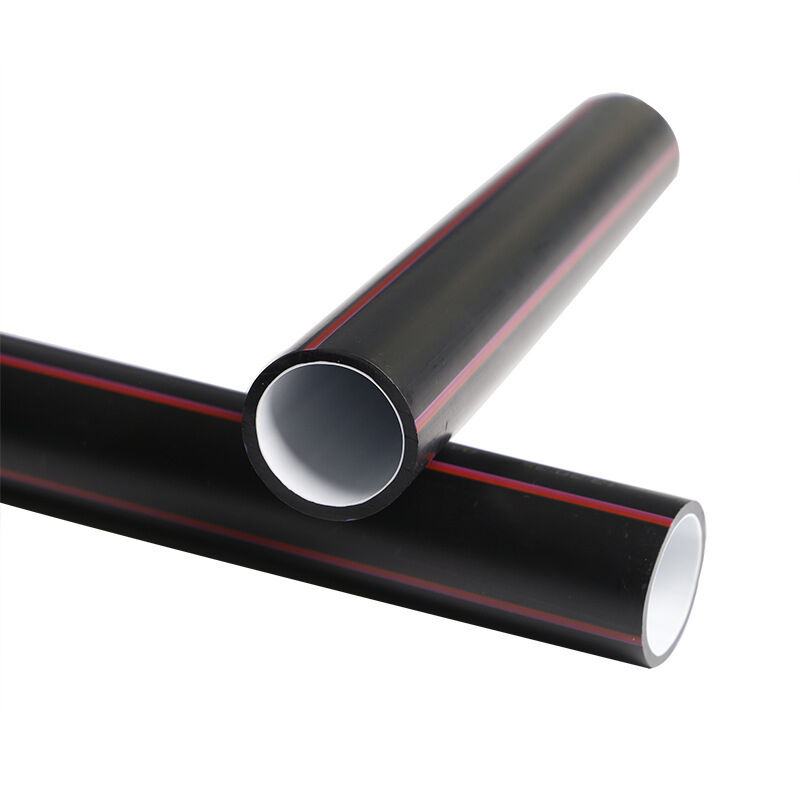

HDPE Ducts are manufactured using ultra-violet (UV) stabilized grade of HDPE with required Anti Oxidant content and other recommended additives. The inner layer of ducts is duly silicon coated which minimizes the friction between OFC and the duct during the process of blowing the cable into the ducts, thus providing smooth installation of OFC in the duct without damaging the cable fibres.
HDPE PLB Duct are designed and engineered to house the sensitive nerves of Information technology i.e. optical fibers thus enabling information transfer across the globe. Available as per International Standards or Customers requirements,Most Suited for Pulling Optical Fibre Cable (OFC), Telecom, Electrical Lines etc.
PLB Duct Pipes are used as underground cable conduits for optical fiber cables, communication cables etc. & are suitable for cable installation by blowing tor pulling by rope techniques.

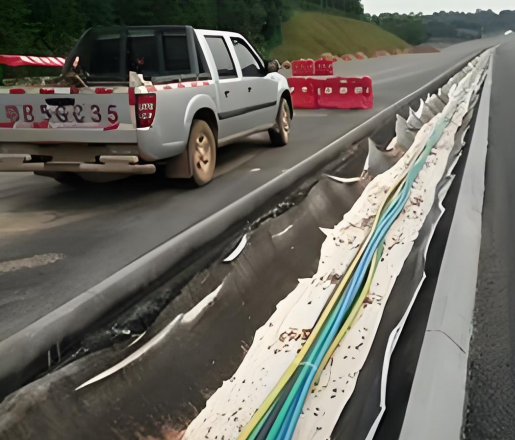

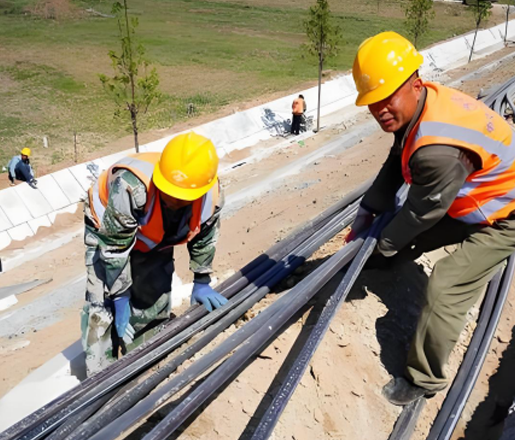

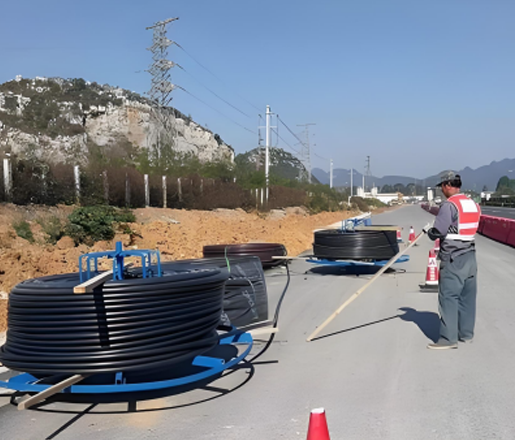

HDPE Ducts are suitable for installation in the field dirt trenches, under sidewalks, roads, within communication networks, between communication centers and between cities. They can also be used in branch networks between cells, distribution cabinets, poles, in walls and within subterranean networks of homes, allowing the insertion of optical or copper communication cables, as well as TV/cable aluminium co-axial cables. Cables can be inserted in through the pipe by blowing, with an internal air-pressure up to eight bars.
|
Specification |

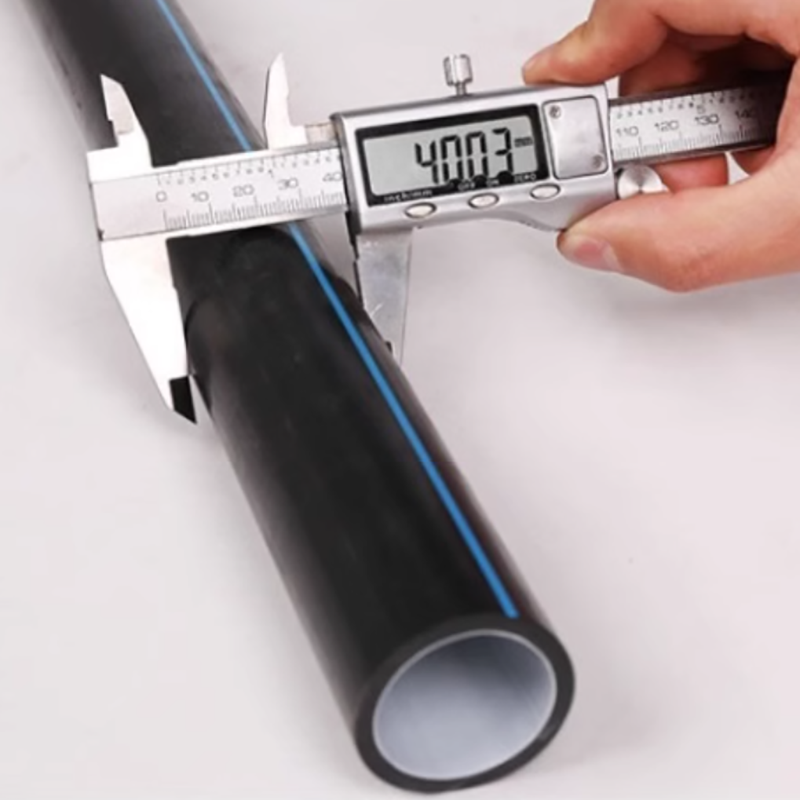

OD (mm) |
Min ID (mm) |
Tickness (mm) |

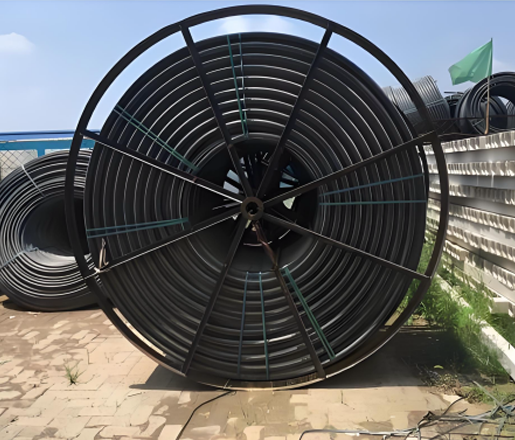

length (m) |
Elasticity |
|
Before coiling |
|||||
|
32/26 |
32 |
26 |
2.5 |
1000, 2000, 3000 |
≤2 |
|
34/28 |
34 |
28 |
3.0 |
1000, 2000, 3000 |
≤2 |
|
40/33 |
40 |
33 |
3.5 |
1000, 2000, 3000 |
≤2.5 |
|
46/38 |
46 |
38 |
4.0 |
1000, 1500 |
≤3 |
|
50/41 |
50 |
41 |
4.5 |
1000, 1500 |
≤3 |
|
63/54 |
63 |
54 |
5.0 |
1000, 1500 |
≤3 |
1). Adopt multi-machine co-extrusion, the silicon core layer is synchronously embedded in the pipe. It will be permanent lubricated and not be stripped forever
2). The friction coefficient of the inner wall is very small. Optical cable (electric cable) can be repeatedly extracted and tension in the pipe.
3). Waterproof, damp-proof, can avoid the damage by rodent animals.
4). Aging-resistant, anti corrosion of chemicals, long service with 50 years
5). Good weather resistant ability, and its suitable temperature from -40°C to 100°C.
6). Convenient in construction, save time and the project cost.
1. Nontoxic
2. Corrosion resistance
3. No Leakage
4. Higher flow capacity than steel pipes
5. Convenient for construction and installation
6. Lower installation costs than cement and steel pipes
7. Longevity of working life more than 50 years
8. HDPE pipe can be recycled and environment-friendly
1. Urban potable water pipeline network system.
2. Replaceable cement pipe, iron pipe and steel pipes.
3. Fire fighting pipeline.
4. Landscaping water supply network.
5. Sewage discharge pipes.
6. Ore and mud transfers.
7. Agricultural irrigation pipe.
1. We are a manufacturer of plastic tubes and fittings. We accept OEM business.
2. We supply stop valve,pipe end cap,equal/reduceing tee,cold hot water ball valve,union ball valve,threaded elbow(plastic or with metal) and so on.

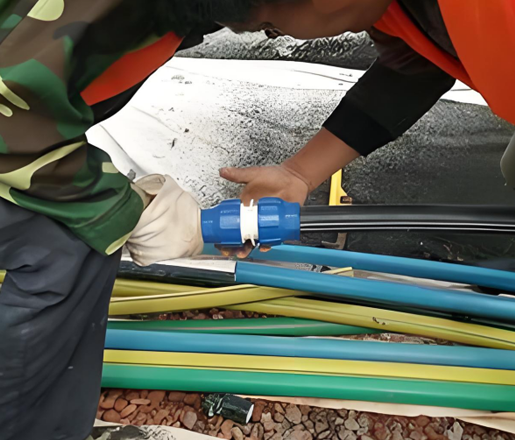

3. We also supply the connectors Accordingly.
4. We can offer you very competitive prices for some pipes.
5. We welcome you to visit our web and our factory. Your visiting will be highly appreciated. It is my pleasure to help you.
6. If you need more customized services and offers,Please Contact Us.
FOSITE is a leading manufacturer for PPR pipes and fittings since foundation in 1995 integrating research, development, production, sales and after-sale service, Mainly producing PPR pipes, PPRCT pipes, PPR aluminum composite pipes, fiber composite pipes, double-ayer PPR pipes, PPR UV pipes, PPRfittings, valves, tools and accessories, etc, which are widely used in water system.
Professional Service:
Pre-sales consultation, in-sales technical support, and after-sales guaranieas, Expert teams wil tailor the bast solution foryou.
Advanced Technology:
More than 500+ molds for tailored designs, Multiple productionlines, state of-the art produclion equlpment, effielent servicesdelivered within 2 months.
Good integrity:
Exported to 40+ countries (Europe, Midd e East, Asla, SouthAmerica, atc.), serving Fortune 500 companies with long-termpartnerships.
Q: What the Raw material ?
A: We only use 100% virgin raw material.
Q: What is your MOQ?
A: As customer's request.
Q: why choose us?
A: We are a professional and leader of pipe fitting factory, we have competitive price an faster delivery time , and we insure our quality is the second to none.
Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us all information which you want, or tell us which kind of products you want? will contact you immediately, or we could recommend style to you.
Q: Can you put your Design and logo on product?
A: Yes, we have professional design service team, we can make any sample as your design, and also can put your logo on products.
Q: What's the payment term?
A: We can accept for L/C, T/T. Any other payment as your request.
Q: Still have a lot of questions?
A: Please feel free to contact with me ,welcome.
