Factory Direct Sales HDPE Pipe Fittings Butt Fusion Elbow
HDPE butt fitting is a kind of pipe fitting for connecting high-density polyethylene (HDPE) solid wall pipe, which is connected by hot melt butt technology. Its working principle is to use a heating plate to heat the end face of the pipe and pipe fittings to a molten state, and then quickly butt and apply pressure, and form a strong connection after cooling
- Overview
- Parameter
- FAQ
- Recommended Products
1. Long working life. Minimum 50 years life under normal conditions.
2. Hygiene. PE pipe are nontoxic, without the composition of heavy metal additives. No scale, not breeding germ, no second pollution to the potable water.
3. High resistance to attack from various types of chemicals.
4. Smooth internal surface. Extremely low friction coefficient. Improved capability for media to pass through. Excellent abrasive resistance.
5. Good flexibility, high resistance to impact. Resistance to earthquake and twisting,brittle temperature could be -70°C.
6. Light weight, easy to transport, convenient installation.
7. Unique electric fusion welding and butt welding make the joints stronger than the material, to guarantee a safe and reliable joint.
8. Simple welding technique, convenient installation. Total cost is low for the installation.

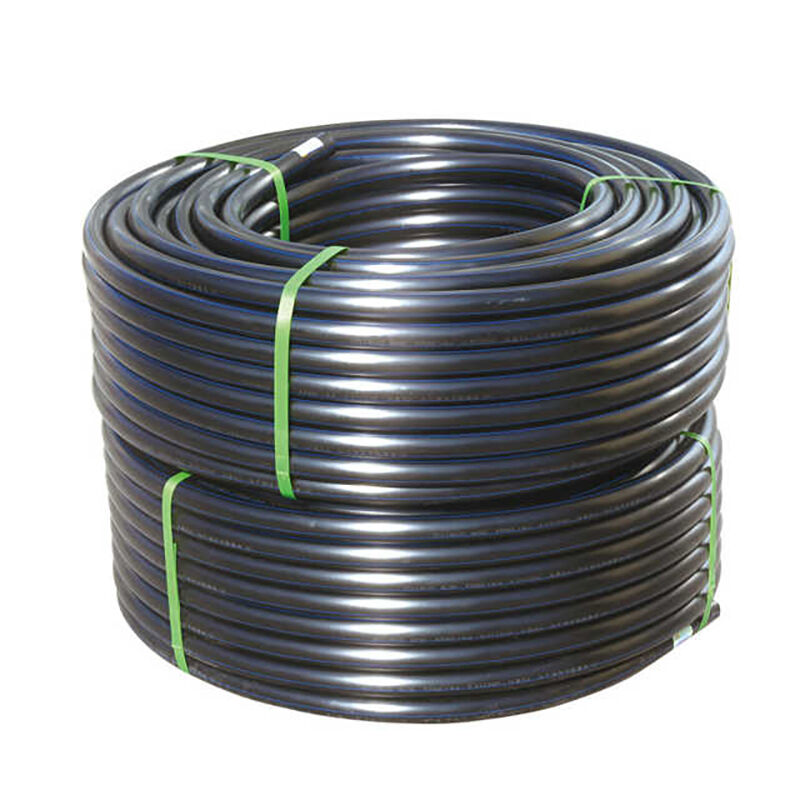

9. Polyethylene water pipes are produced in black, black with blue stripes and blue etc.
| Nominal pressure | PN 0.6 MPa | PN 0.8 MPa | PN 1.0 MPa | PN 1.25 MPa | PN 1.6 MPa | PN 2.0MPa |
| Standard dimension ratio | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 |
|
Nominal outside diameter (mm) |
Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) |
| Φ20 | 2.30 | 2.30 | ||||
| Φ25 | 2.30 | 2.30 | 3.00 | |||
| Φ32 | 2.30 | 2.40 | 3.00 | 3.60 | ||
| Φ40 | 2.30 | 2.40 | 3.00 | 3.70 | 4.50 | |
| Φ50 | 2.30 | 2.40 | 3.00 | 3.70 | 4.60 | 5.60 |
| Φ63 | 2.50 | 3.00 | 3.80 | 4.70 | 5.80 | 7.10 |
| Φ75 | 2.90 | 3.60 | 4.50 | 5.60 | 6.80 | 8.40 |
| Φ90 | 3.50 | 4.30 | 5.40 | 6.70 | 8.20 | 10.40 |
| Φ110 | 4.20 | 5.30 | 6.60 | 8.10 | 10.00 | 12.30 |
| Φ125 | 4.80 | 6.00 | 7.40 | 9.20 | 11.40 | 14.00 |
| Φ140 | 5.40 | 6.70 | 8.30 | 10.30 | 12.70 | 15.70 |
| Φ160 | 6.20 | 7.70 | 9.50 | 11.80 | 14.60 | 17.90 |
| Φ180 | 6.90 | 8.60 | 10.70 | 13.30 | 16.40 | 20.10 |
| Φ200 | 7.70 | 9.60 | 11.90 | 14.70 | 18.20 | 22.40 |
| Φ225 | 8.60 | 10.80 | 13.40 | 16.60 | 20.50 | 25.20 |
| Φ250 | 9.60 | 11.90 | 14.80 | 18.40 | 22.70 | 27.90 |
| Φ280 | 10.70 | 13.40 | 16.60 | 20.60 | 25.40 | 31.30 |
| Φ315 | 12.10 | 15.00 | 18.70 | 23.20 | 28.60 | 35.20 |
| Φ355 | 13.60 | 16.90 | 21.10 | 26.10 | 32.20 | 39.70 |
| Φ400 | 15.30 | 19.10 | 23.70 | 29.40 | 36.30 | 44.70 |
| Φ450 | 17.20 | 21.50 | 26.70 | 33.10 | 40.90 | 50.30 |
| Φ500 | 19.10 | 23.90 | 29.70 | 36.80 | 45.40 | 55.80 |
| Φ560 | 21.40 | 26.70 | 33.20 | 41.20 | 50.80 | 62.50 |
| Φ630 | 24.10 | 30.00 | 37.40 | 46.30 | 57.20 | 70.30 |
| Φ710 | 27.20 | 33.90 | 42.10 | 52.20 | 64.50 | 79.30 |
| Φ800 | 30.60 | 38.10 | 47.40 | 58.80 | 72.60 | 89.30 |
| Φ900 | 34.40 | 42.90 | 53.30 | 66.20 | 81.70 | |
| Φ1000 | 38.20 | 47.70 | 59.30 | 72.50 | 90.20 | |
| Φ1200 | 45.90 | 57.20 | 67.90 | 88.20 | ||
| Φ1400 | 53.50 | 66.70 | 82.40 | 102.90 |
High strength connection: high strength and good sealing after welding.
Wide range of application: can be used in water supply, gas, chemical and other fields.
Corrosion resistance: material corrosion resistance, long service life.
High reliability: stable welding quality, not easy to leak.
1.Urban area water-supply work system. Large diameter PE pipe is healthy and non-toxic and more suitable for urban water supply main conduit and buried tube.
2.Replace cement tube, iron pipe and steel tube. Applicable for renovation project and does not need large area excavation, PE pipe can be widely used in old town of pipe network reconstruction.
3.Industrial materials transmission pipe. Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and paper-making, metallurgical and other industrial raw material conveying pipe.
4.Landscaping water supply network. As landscaping project needs lots of water supply pipes, PE pipe is the best choice for its toughness and low costs.
5.Sewage discharge pipes. PE pipe have unique corrosion resistance, can be used in industrial waste water, sewage discharged pipe, low costs and maintenance costs .
6.Ore, mud transfers. PE pipe has high resistance to stress and wear resistance, can be widely applied in conveying ore, coal ash and river bait-casting mud.
7. Agricultural irrigation pipe. PE pipe has the merits of great flow and good impact resistance, it is the ideal tool for agricultural irrigation.
Preparation: Clean the end face of the pipe and fittings to ensure that there is no dirt.
Install pipe fittings: Fix the pipe and pipe fittings to the butt welding machine.
Heating: Use a heating plate to heat the end face of the pipe and fittings to a molten state.
Butt joint: Quickly remove the heating plate, butt the pipe and fitting and apply pressure.
Matters needing attention
Environmental conditions: Avoid construction in harsh environments.
Quality check: Check the quality of the connection after welding to ensure that there are no defects
1. We are a manufacturer of plastic tubes and fittings. We accept OEM business.
2. We supply stop valve,pipe end cap,equal/reduceing tee,cold hot water ball valve,union ball valve,threaded elbow(plastic or with metal) and so on.
3. We also supply the connectors Accordingly.
4. We can offer you very competitive prices for some pipes.
5. We welcome you to visit our web and our factory. Your visiting will be highly appreciated.. It is my pleasure to help you.
6. If you need more customized services and offers,Please Contact Us.
FOSITE is a leading manufacturer for PPR pipes and fittings since foundation in 1995 integrating research, development, production, sales and after-sale service, Mainly producing PPR pipes, PPRCT pipes, PPR aluminum composite pipes, fiber composite pipes, double-ayer PPR pipes, PPR UV pipes, PPRfittings, valves, tools and accessories, etc, which are widely used in water system.
Professional Service:
Pre-sales consultation, in-sales technical support, and after-sales guaranieas, Expert teams wil tailor the bast solution foryou.
Advanced Technology:
More than 500+ molds for tailored designs, Multiple productionlines, state of-the art produclion equlpment, effielent servicesdelivered within 2 months.
Good integrity:
Exported to 40+ countries (Europe, Midd e East, Asla, SouthAmerica, atc.), serving Fortune 500 companies with long-termpartnerships.
